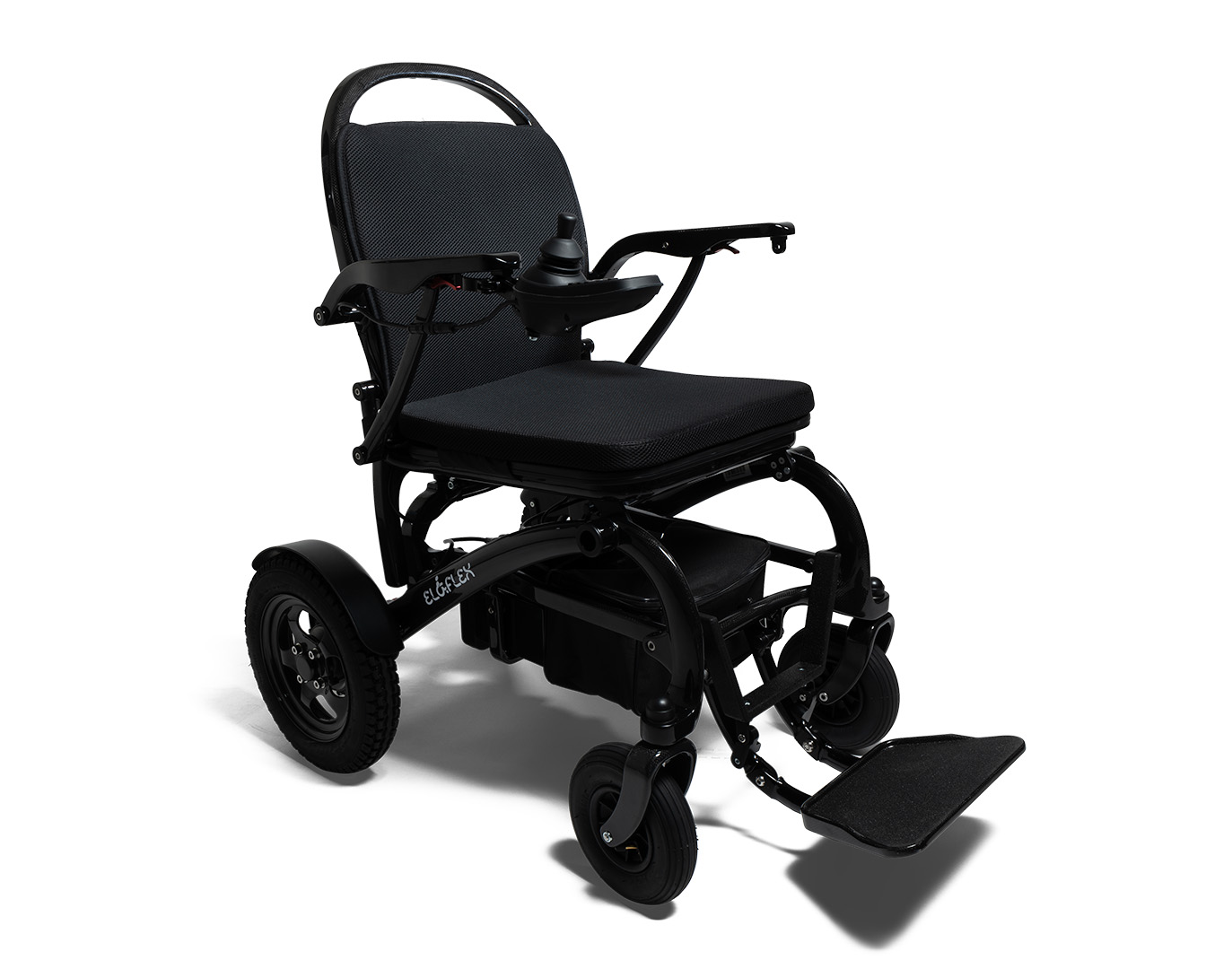

Eloflex C3



The Eloflex C3 features a carbon fiber construction that reduces weight, making it easy to transport and use daily. It weighs 20 kg without batteries and has compact dimensions, robust wheels, and powerful motors for smooth and stable driving.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Eloflex C3


HMI-no.
145260
Article-no.
A95

Registration date
25-06-2025
Last updated
06-03-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
No
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
160
kg
External width
63
cm
Measured where widest
External length
100
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
24
kg
Speed, max
6.5
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
55
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
55
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
9
°
Recline of back rest from an upright position.
Tilt-in-space forward
9
°
Measured from the horizontal position.
Tilt-in-space back
9
°
Measured from the horizontal position.
Ground clearance
5
cm
Slope, max
6
°
Climbs obstacles of max
5
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2022: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd.. Test date: 24-10-2024 Test report for HMI-no. 145260

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 145260
