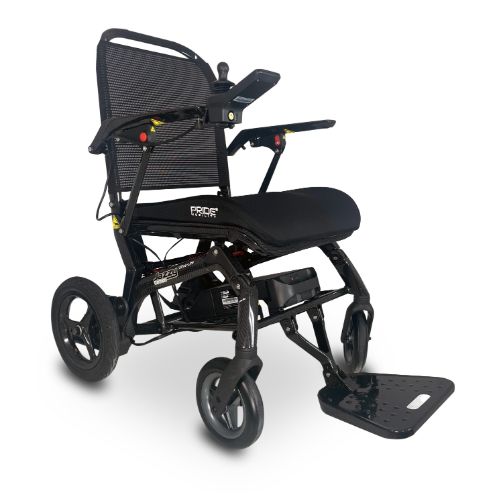

Jazzy Carbon Ultra Lite

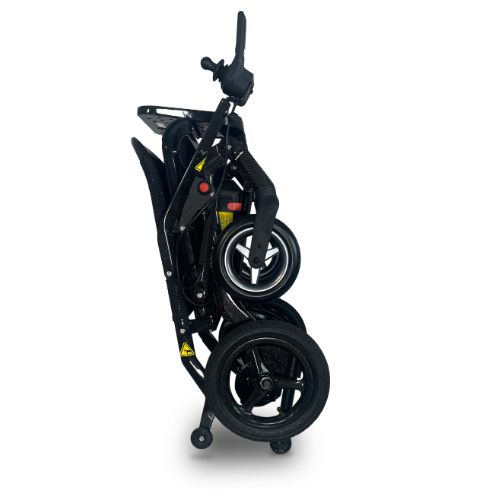

Carbon fiber power wheelchair only about 14.5 kg without the battery. Top speed approx. 6.4 km/h and a range of up to 20 km per charge. Folds and is travel-friendly for car, train, or plane. Maximum user weight up to 136 kg. Used as a travel or everyday chair thanks to its compact size and mobility.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
Brochure
User manual


The product series contains 1 product.

Product 1 of 1
Jazzy Carbon Ultra Lite


HMI-no.
146631
Article-no.
HF-HP200-PT23

Registration date
02-12-2025
Last updated
29-04-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
125
kg
External width
62
cm
Measured where widest
External length
100
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
14.5
kg
Speed, max
6.4
km/t
Driving distance range, fully charged
10
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
48
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
48
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
0
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
12
cm
Slope, max
9
°
Climbs obstacles of max
4
cm

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 146631
