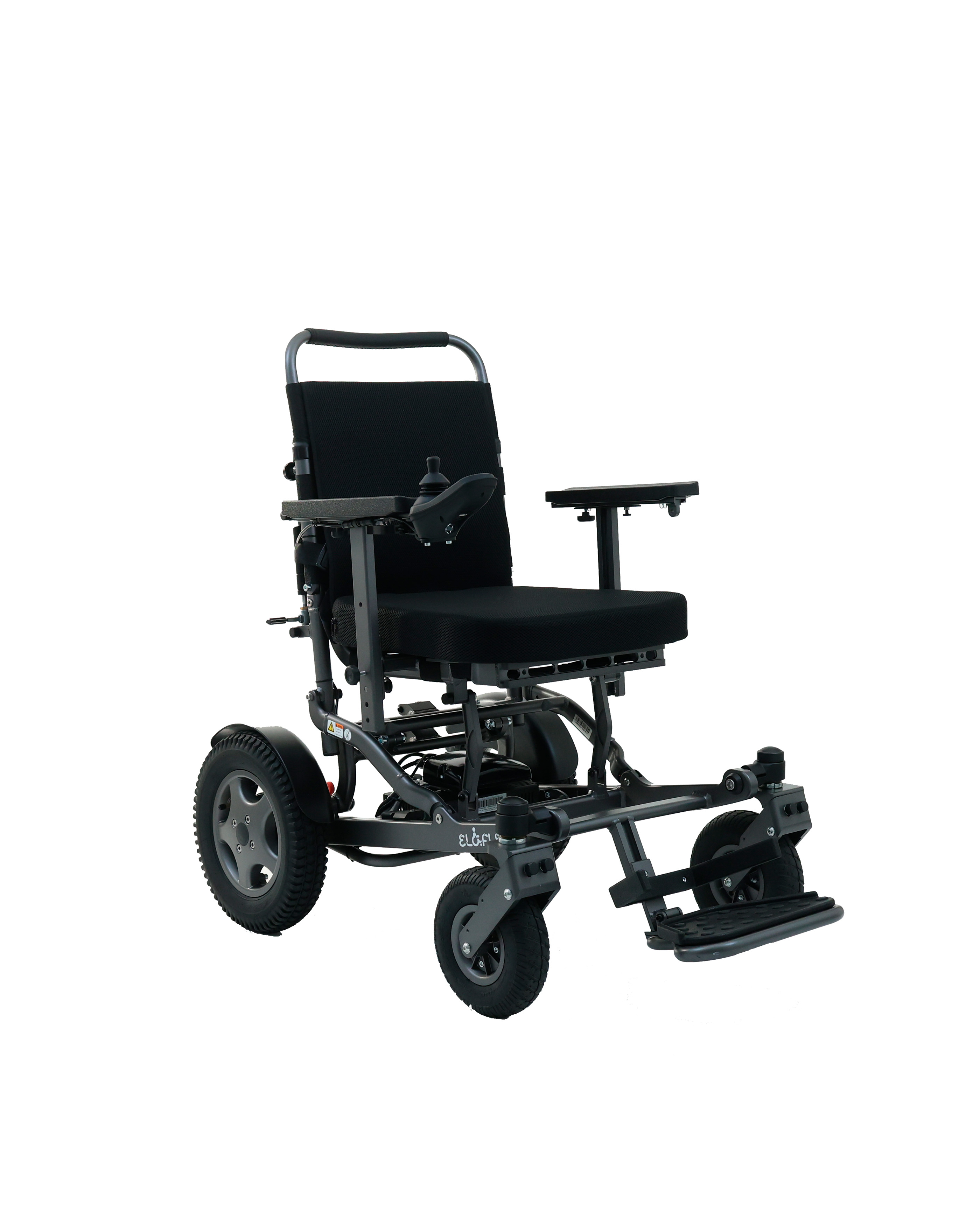

Eloflex H2




Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)



The product series contains 1 product.

Product 1 of 1
Eloflex H2


HMI-no.
148195
Article-no.
A101

Registration date
28-04-2026
Last updated
30-04-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
No
Suspension
No
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
190
kg
External width
65
cm
Measured where widest
External length
125
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
46
kg
Speed, max
6.5
km/t
Driving distance range, fully charged
30
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
58
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
58
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
30
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
6
cm
Slope, max
9
°
Climbs obstacles of max
4
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2022: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: Shanghai SUNGO Medical Technology Co., Ltd. Hefei Branch. Test date: 28-01-2026 Test report for HMI-no. 148195

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 148195
