Elio Carbon

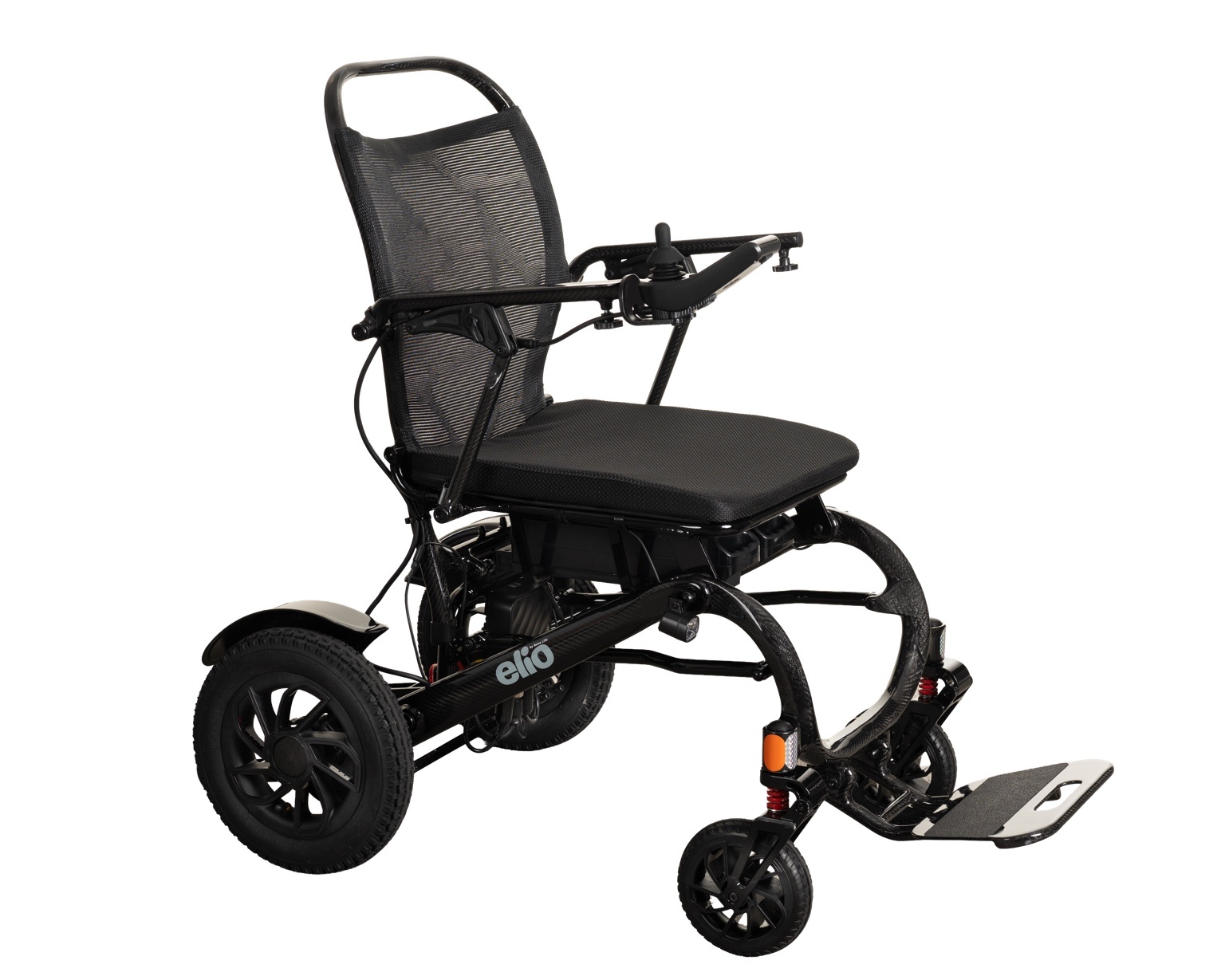

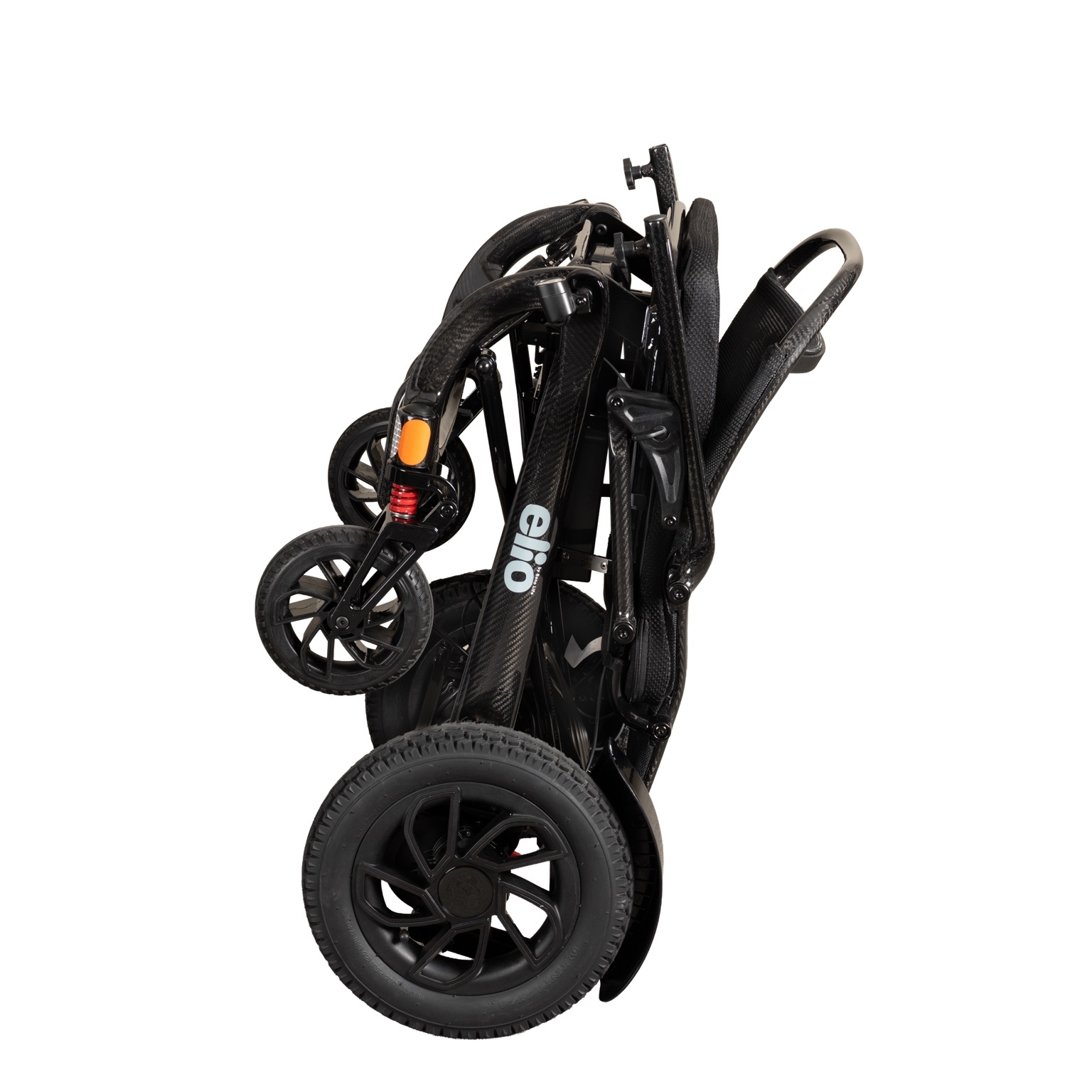

Foldable powered wheelchair with a lightweight carbon fiber frame, 2 250 W brushless motors, and front-wheel suspension. Transport weight is 21.5 kg without batteries. With an overall width of 58 cm and a range of up to 38 km, it is ideal for transport and travel. Removable batteries and a foldable design ensure easy handling.

Classification
12 23 06 07 - Powered wheelchairs, powered steering, class A (primarily for indoor use)

Documents
Brochure
User manual
QuickGuide
Accessories catalogue
Spare part catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
Elio Carbon


HMI-no.
148288
Article-no.
DC10M

Registration date
29-05-2026
Last updated
04-06-2026

Properties
Programmable
Yes
Elevating seat
No
Powered recline
No
Powered tilt
No
Powered legrests
No
Optional motorized attendant control
Yes
Suspension
Yes
Front-wheel-driven
No
Mid-wheel-driven
No
Rear-wheel-driven
Yes
Can be used as seat in a car
No

Measures
User weight, max
150
kg
External width
58
cm
Measured where widest
External length
113
cm
Maximum external length with the seat in an upright position. Measured without leg supports
Weight
21.56
kg
Speed, max
6.5
km/t
Driving distance range, fully charged
38
km
The theoretical driving distance range as calculated through laboratory testing.
Seat height, min
53
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the lowest position.
Seat height, max
53
cm
The vertical distance between the floor and the seat surface measured at the front edge of the seat. Measured with the seat in the highest position.
Back rest recline, max
0
°
Recline of back rest from an upright position.
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
0
°
Measured from the horizontal position.
Ground clearance
5
cm
Slope, max
8
°
Climbs obstacles of max
5
cm

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
EN 12184:2022: Electrically powered wheelchairs, scooters and their chargers - Requirements and test methods.
Test lab: SGS. Test date: 12-12-2023 Test report for HMI-no. 148288

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 148288

Other specifications
Foldable powered wheelchair with a lightweight carbon fiber frame, 2 250 W brushless motors, and front-wheel suspension. The transport weight is only 21.5 kg without batteries. A narrow overall width of 58 cm provides excellent indoor manoeuvrability. Removable batteries and a foldable design make the wheelchair particularly suitable for transport
