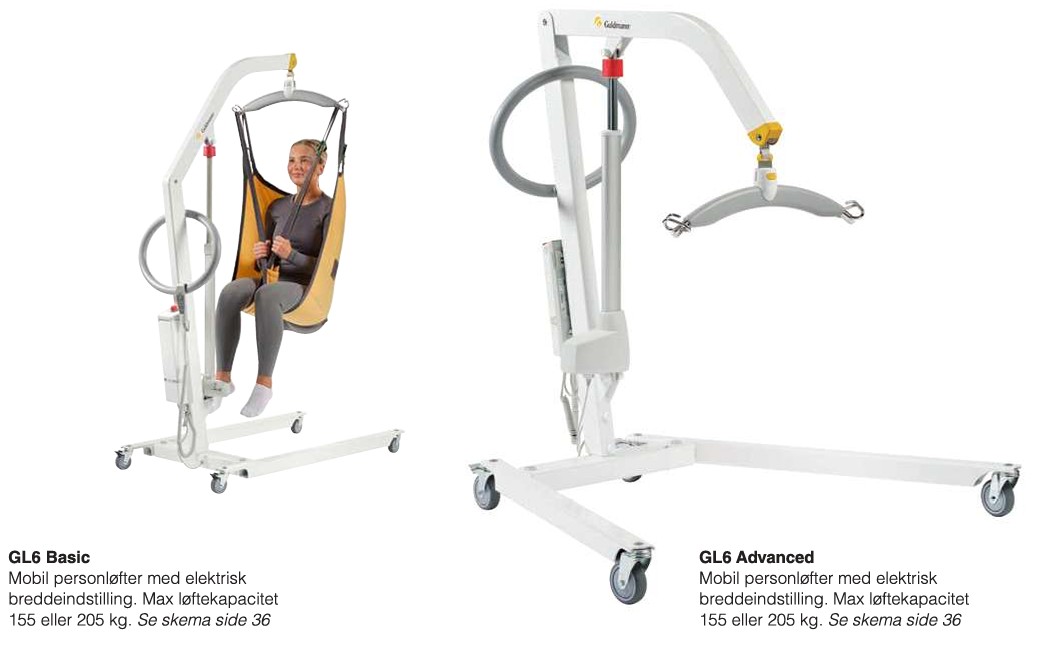

Mobile Lifter GL6



Transfer equipment for lifting and moving a person in a seated, near-seated, and semi-reclined position. The body-supporting unit consists of a lifting sling.
Now featuring an ergonomic soft-grip handle made of polypropylene, as well as a new flexible hook system that makes attaching and detaching the lifting hanger easier and more intuitive.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
Accessories catalogue


The product series contains 2 products.

» Summarize specifications

Product 1 of 2

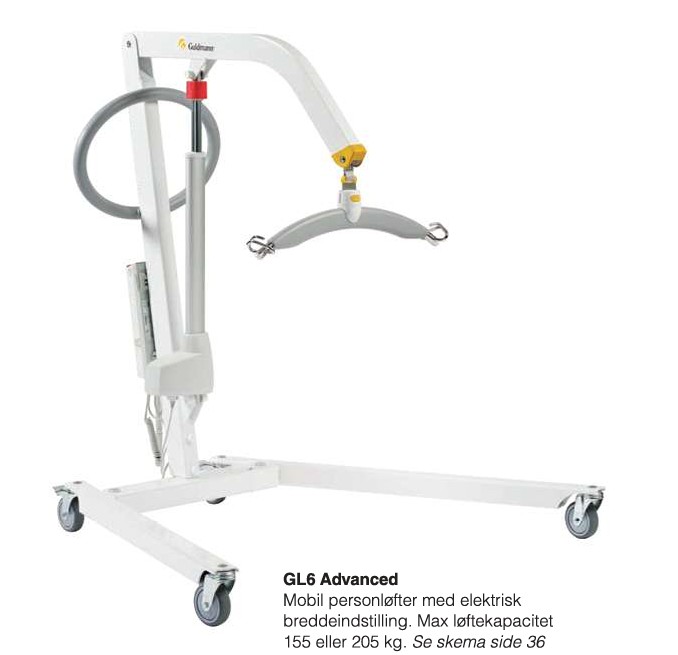

Mobile lifter GL6 Advanced


HMI-no.
149921
Article-no.
568775

Registration date
30-09-2026
Last updated
14-10-2026

Properties
Width adjustment of base
Ja, elektrisk
Width adjustable movement
V-formet
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
205
kg
Internal width of base, max
129.1
cm
Measured with the base in the widest position
External width of base in the most narrow position
68.2
cm
Height of base at front
14.5
cm
Turning diameter
143
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 149921

Other specifications
205 kg, Ø100 hjul


Product 2 of 2

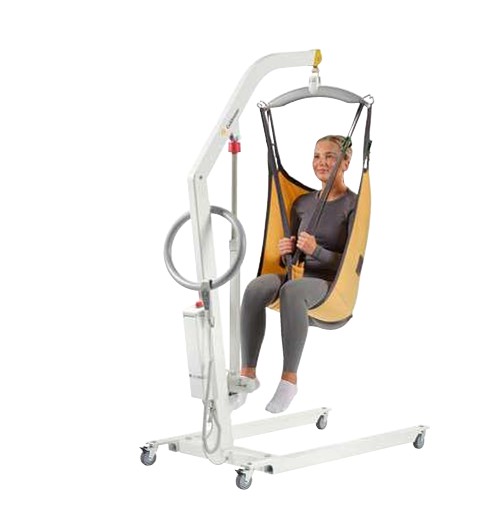

Mobile lifter GL6 Basic


HMI-no.
149917
Article-no.
568771

Registration date
30-09-2026
Last updated
14-10-2026

Properties
Width adjustment of base
Ja, elektrisk
Width adjustable movement
V-formet
Lifting movement
Bueformet
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
205
kg
Internal width of base, max
129.1
cm
Measured with the base in the widest position
External width of base in the most narrow position
68.2
cm
Height of base at front
14.5
cm
Turning diameter
143
cm
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)
Maintenance frequency
12
måneder

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
EU declaration of conformity for HMI-no. 149917

Other specifications
205 kg, Ø100 wheels
