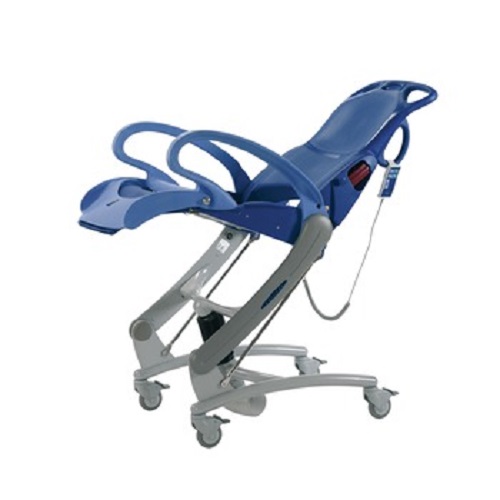

Carendo, height adjustable hygiene chair

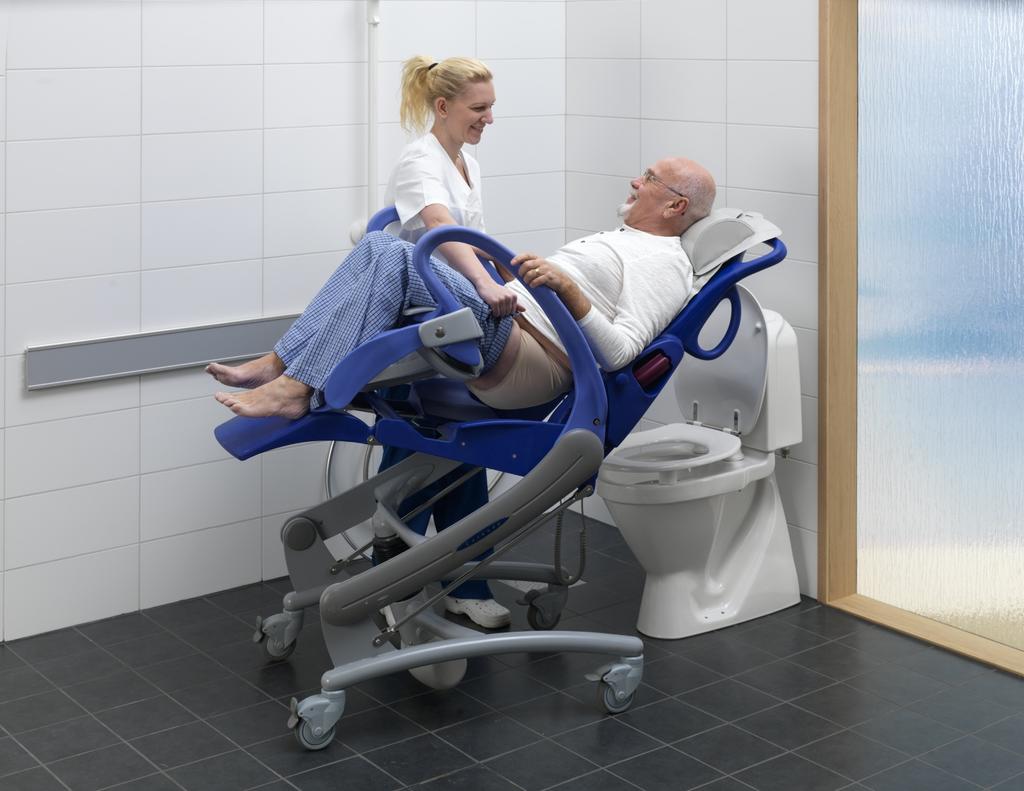

Carendo is designed to enable a single caregiver to perform the full hygiene routine, including dressing and undressing, toileting, showering and other hygiene tasks in a single transfer. Height-adjustable and reclining, Carendo allows the caregiver and resident to reach their preferred height and position throughout the hygiene routine.

Classification
09 12 03 11 - Commode shower chairs with wheels, tilt and electrical functions

Documents
Brochure
User manual
QuickGuide
Spare part catalogue
Service manual


The product series contains 1 product.

Product 1 of 1
Carendo, Height adjustable hygiene chair


HMI-no.
28144
Article-no.
BIB2005-01

Registration date
13-12-2000
Last updated
11-09-2025

Properties
Height adjustable
Elektrisk
Tension adjustable back rest upholstery
No
Can be used with standard wall-mounted toilets (without extension)
Yes
Possibility to change position of armrest to allow sideways transfer
Yes
Powered tilt
Yes
Tilt-in-space dissociated from the height adjustment
No
The function of the tilt-in-space is separated from the hydraulic or electrical function of the height adjustment.
Head support
No
Battery chargeable separated from the product
Yes
Emergency stopping function
Yes
Fold-up foot supports
No
Height adjustable legrests
No
Elevating legrests
Yes
Legrest position may be changed to facililtate hygiene and transfer
No

Measures
User weight, max
136
kg
Total width
65
cm
Ground clearance
46.5
cm
Measured from the floor to the lowest point under the seat. Measured without bedpan/collection receptacle.
Width between arm supports
48
cm
Smallest distance measured between the inside of the arm supports. If the arm supports are adjustable, this is measured with the arm supports in the widest position.
Seat depth
43
cm
If the seat depth is adjustable, this is the maximum seat depth
Wheel diameter
100
mm
Number of wheels with brake
4
Seat height, min
47
cm
Seat height, max
102
cm
Tilt-in-space forward
0
°
Measured from the horizontal position.
Tilt-in-space back
57
°
Measured from the horizontal position.
Height of push handles/push bar, min.
0
cm
Measured from the floor to the upper surface of the grip. According to ISO 17966:2016 it shall be possible to push the chair with the grip 90 cm above the floor.
Height of push handles/push bar, max.
0
cm
Measured from the floor to the upper surface of the heigher grip with the chair in the highest position
Ingress protection class for water
4
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
Though the product is testet, it might not have passed all requirements in the standard. Besides, some products are only tested according to parts of the standard. Read the test report for detailed information. See also other standards that could be relevant for this product type.
: Tested according to other national or international standard.
Test lab: TÜV SÜD. Test date: 10-08-2017 Test report for HMI-no. 28144

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
