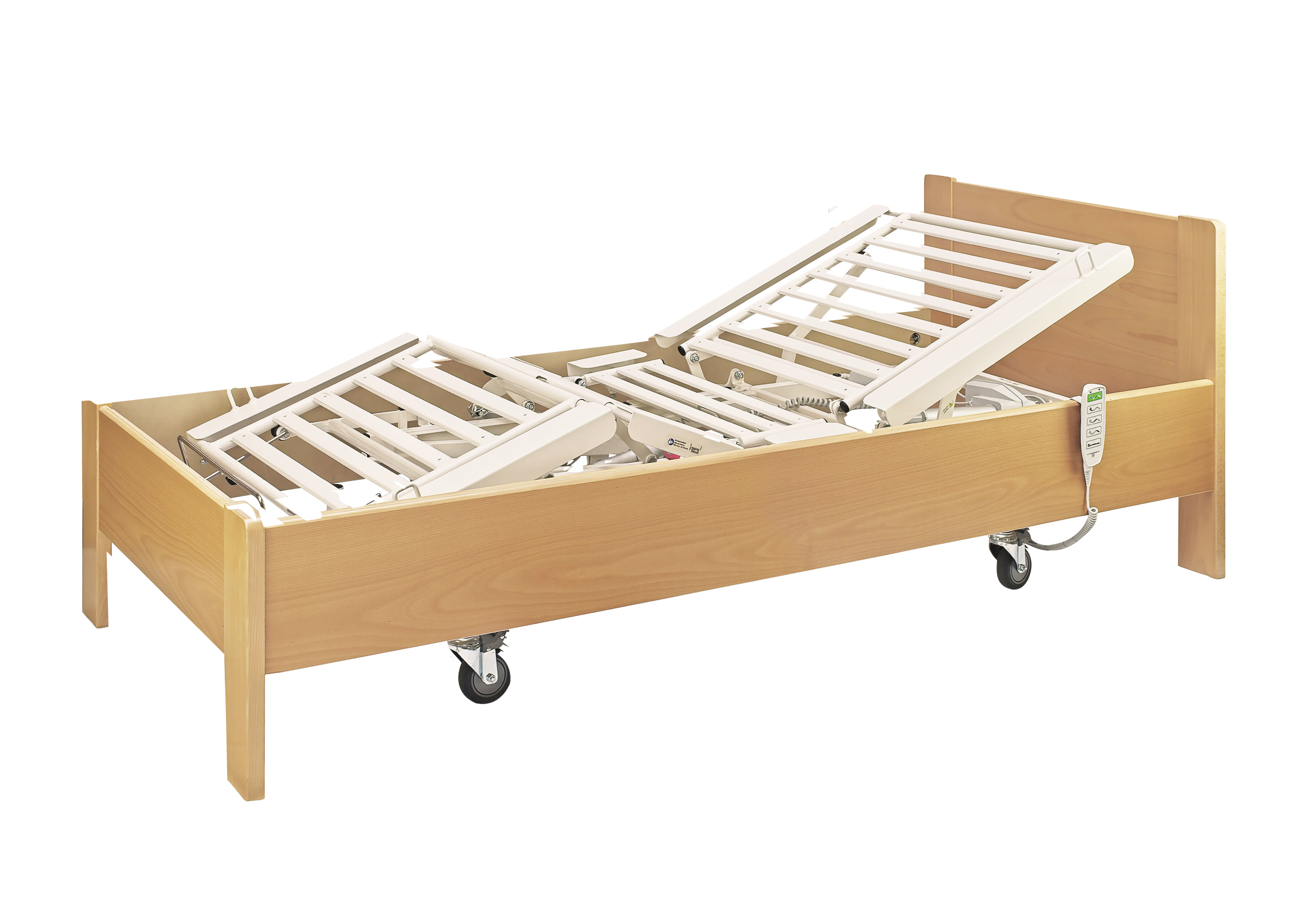

OPUS S-DW Built-in bed

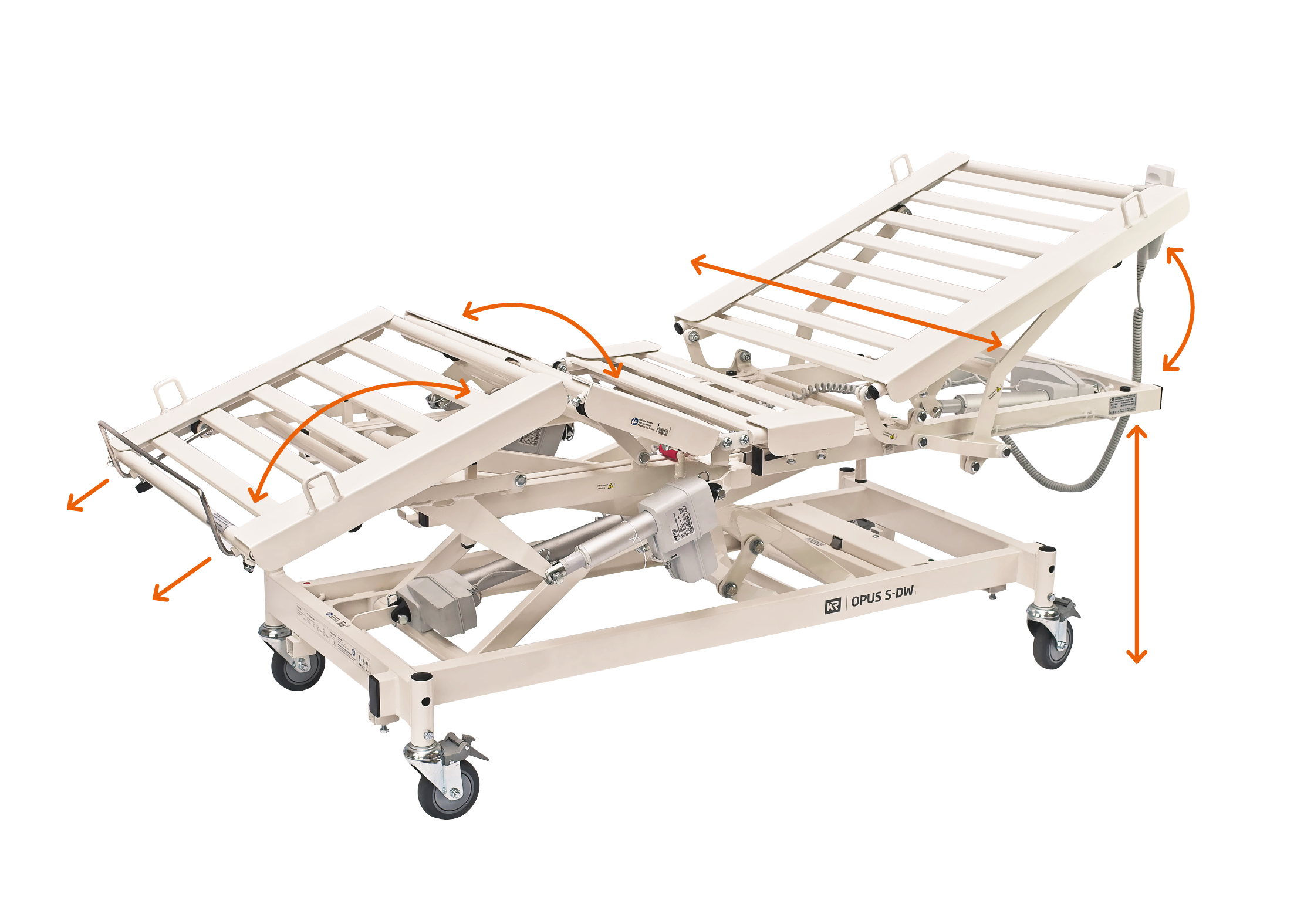

A separable Built-in Care Bed for bed or bed frame. Adjustable length 196-225, width 76-100 and height 34-80 cm. Mattress width x lenght: 70-90 x 190-210 cm. 4-sectioned ergonomic mattress support platform with retrograde back regulation and manual length extension (20 cm). Accessories: Lifting pole, support grips etc.

Classification
18 12 10 33 - Detachable bed boards, 4-sectioned mattress support platform, electrically operated

Documents
User manual
QuickGuide
Service manual


The product series contains 1 product.

Product 1 of 1
OPUS S-DW Built-in Bed


HMI-no.
120476
Article-no.
1498-SDW

Registration date
02-12-2019
Last updated
11-09-2025

Properties
Bed extension
No
Bed extension, follows the movements of the mattress support platform
No
Intended for use in hospitals
No
Intended for use in nursing institutions
Yes
Intended for long-term care in a medical area where medical supervision is required and monitoring is provided if necessary, e.g. nursing homes and rehabilitation and geriatic facilities.
Intended for use in a domestic area
Yes
Machine washable
No
Machine washable at least 50 times according to EN 50637:2017 and EN 60601-2-52:2010/A1:2015.
Back rest section, electrical adjustment
Yes
Leg section, electrical adjustment
Yes
Upper leg section, electrical adjustment
Yes
Separate adjustment of back rest
Yes
Indicates whether the back rest can be adjusted independently of other parts of the mattress support platform
Combined adjustment of mattress support platform
Yes
Indicates whether back rest and knee bending can be adjusted with one control button
Adjustable head support section
No

Measures
Outside measure length
225
cm
Measured without any bed extension
Outside measure width
100
cm
Measured including non-detachable accessories
Mattress size, length
210
cm
Mattress size, width
90
cm
Load, max
250
kg
Maximum external load on the product that is permitted in normal use
User weight, max
200
kg
Weight of heaviest main part
25
kg
Weight of heaviest part when disassembled without the use of tools.
Ingress protection class for water
6
IP
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Test information
No information about tests according to standards
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device
