Solar 185

Solar 185

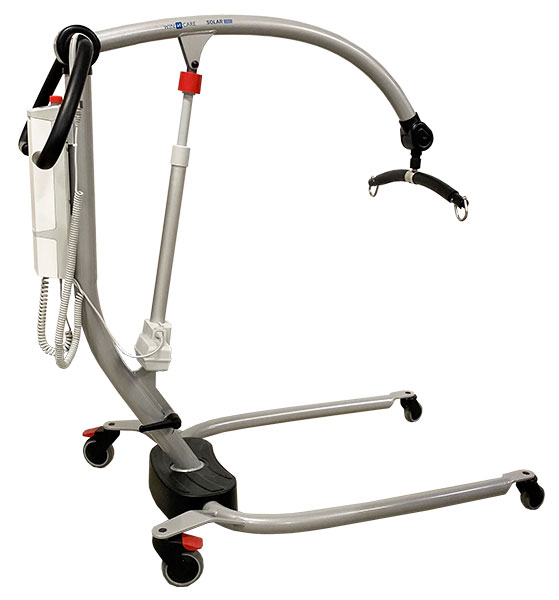

Solar 185 Easy going mobile lifter, easy to push and turn. The design of the lift and the lifting arm provide the user plenty of space and a comfortable transfer. The curved legs gives a wider opening of the base for access even to large chairs or wheelchairs.

Classification
12 36 03 04 - Mobile hoists for transferring a person in sitting position with sling seats

Documents
Brochure
User manual
QuickGuide


The product series contains 1 product.
The product series also includes a discontinued product. Include discontinued products.

Product 1 of 1
Solar 185


HMI-no.
133504
Article-no.
010-01403

Registration date
29-07-2022
Last updated
11-01-2024

Properties
Ingress protection class for water
IPX4
info
0-9 (IPX0-IPX9) according to the standard for degrees of protection provided by enclosures (IEC 60529)

Properties
Width adjustment of base
Ja, elektrisk

Properties
Lifting movement
Vertikal
info
The distance between the central supension point and the mast is constant with a vertical lifting movement. With a curved lifting movement the distance varies.
Foldable
No
Can be disassembled without tools
Yes
Can lift from floor level
Yes
Standing mobile hoist unit available
No
Integrated battery charger
Yes
Emergency lowering function
Yes

Measures
User weight, max
185
kg
Internal width of base, max
92
cm
info
Measured with the base in the widest position
External width of base in the most narrow position
70
cm
Height of base at front
12
cm
Turning diameter
143
cm
info
Diameter of the narrowest circle encompassing the extreme points of the hoist, when it is turned 360 degrees without beeing reversed.
Weight of heaviest main part
24.8
kg
Maintenance frequency
12
måneder

Test information
No information about tests according to standards info
The supplier has not provided documentation, that this product is testet according to a relevant standard. See examples of relevant standards for this product type

EU product safety regulation info
The supplier has provided the following information about CE-marking of the product. Explain CE-marking
CE marked as medical device

Other specifications
Linak actuator and Lift 40 controlbox with
OneConnectTM
